1969 Cadillac Fleetwood




FLEETWOOD SIXTY-SPECIAL SUB-SERIES 680/681


Fleetwood models had all standard features of DeVille’s, except limousine had no front center arm rest. Extra regular equipment included Automatic Level Control. The Brougham included adjustable reading lamps and a Dual Comfort front seat. External identification was provided with bright metal body underscores, Fleetwood emblems and lettering and padded Brougham roof. The wheelbase for Sixty-Specials was again 3-1/2 inches longer than on other models. Interior appointments were enriched and new, Eldorado-look, front and rear styling was seen.


Model NumberStyle NumberBody TypeSeatingFactory PriceShipping WeightProduction Total
69-68068069M

4-door Sedan

1969 Cadillac Fleetwood
6677947652,545
69-68168169P

4-door Brougham

1969 Cadillac Fleetwood
67110477017,300


NOTE: On January 1, 1969, head rests (restraints) became mandatory on all U. S. and Canadian cars. Cadillac prices were increased $18 to reflect the cost of the head rests. Dealer preparation charges were $115 on Fleetwood Sixty-Special and Brougham. These charges are included in retail prices listed above.

FLEETWOOD SEVENTY-FIVE SUB-SERIES 697/698


Stretched bodies and trim; Fleetwood emblems and embellishments; doors cut into a formal, high headroom roof and generally higher appointment and trim levels continued to mark Cadillac's most luxurious line. All DeVille equipment plus Automatic Level Control; Automatic Climate Control; rear window defogger; four rear ash trays and 8.20 x 15 four ply blackwall tires were standard.


Model NumberStyle NumberBody TypeSeatingFactory PriceShipping WeightProduction Total
69-69769723R

4-door Sedan

1969 Cadillac Fleetwood Limo
610,8415430880
69-69769733S

4-door Limousine

1969 Cadillac Fleetwood Limo
910,97955551,156
69-6986989OZCommercial chassis---2,550

NOTE: On January 1, 1969, head rests (restraints) became mandatory on all U. S. and Canadian cars. Cadillac prices were increased $18 to reflect the cost of the head rests. Dealer preparation charges were $150 on Fleetwood Seventy-Fives. These charges are included in retail prices listed above.

CADILLAC V-8 ENGINE
  • V-8 Overhead valves
  • Cast iron block
  • Displacement: 472 cubic inches
  • Bore and stroke: 4.30 x 4.06 inches
  • Compression ratio: 10.5:1
  • Brake horsepower: 375 at 4400 rpm
  • Five main bearings
  • Hydraulic valve lifters
  • Carburetor: Rochester four-barrel Quadrajet, model 7028230.
CHASSIS

FeatureCommercial ChassisSeventy-FiveSixty-Special
Wheelbase156 inches149.8 inches133 inches
Overall length-245.5 inches228.5 inches
Front treadnot available
Rear treadnot available
Tires-8.20 x 15 four-ply blackwall9.00 x 15-PR blackwalls

POWER TRAIN OPTIONS

  • All cars used the 472 cubic inch, 375 horsepower V-8 with no other powerplants available.
  • Turbo-Hydramatic transmission was standard equipment throughout the line.
  • Controlled differential was $52.65 extra on all models except Eldorado.
  • Standard axle ratios: (Seventy-Five) 3.21:1; (Eldorado) 3.07:1; (all other models) 2.94:1.
CONVENIENCE OPTIONS

  • Automatic Climate Control option ($516).
  • Firemist paint ($132).
  • Cruise Control ($95).
  • Rear window defogger, models M-P ($26).
  • Door guards, models M-P-R-S ($8).
  • Dual comfort seat, standard in Brougham, optional model M ($105).
  • Twin front and rear floor mats ($17).
  • Twin front floow mats, models R-S ($10).
  • Soft Ray tinted glass ($53).
  • Guide-Matic headlamp control ($51).
  • Head restraints ($18)
  • Note: Head restraints mandatory after January 1, 1969.
  • Leather upholstery, models M-P ($138)
  • License frame, single ($6); dual ($13).
  • Power door locks, includes electric seat back release, models M-P ($68); models R-S ($116).
  • AM radio ($162).
  • AM/FM radio ($188).
  • AM/FM stereo radio, except models R-S ($288).
  • AM rear-control radio, models R-S ($242).
  • Six-way power seat adjuster, front seat, front seat, models M-R, with bench seat only ($90); models M-P, for righthand Dual Comfort seat, Code Y accessories required, ($116).
  • Front seat warmer, available all models, except rear seat only in models R-S, ($95).
  • Front shoulder belts ($32).
  • Tilt and telescope steering wheel ($95).
  • Trumpet horn ($16).
  • Remote control trunk lock ($32).
  • Twilight Sentinel ($32).
  • Whitewall tires, size 9.00 x 15 four-ply, except models R-S ($57 exchange).
  • Whitewall tires, size 8.20 x 15 four-ply, models R-S only ($63 exchange).
HISTORICAL
  • Dealer introduction for 1969 Cadillac’s and Eldorado’s was held September 26, 1968.
  • Production of the Eldorado body for 1969 was transferred from the Fleetwood plant in Detroit to the Fisher Body plant in Euclid, Ohio.
  • Cadillac enjoyed its fifth consecutive record sales year and built over 250,000 units for the first time in company history. (Calendar year figures).
  • Strikes again affected the 1969 model run and production of cars built to 1969 specifications peaked at 223,267 units, of which 199,934 were regular Cadillacs.
  • Total production fell 2.9 percent over the 1968 model run.
There are no translations available.

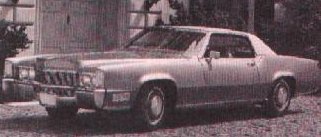

1969 Cadillac Eldorado



1969 Cadillac EldoradoEven though production volume eased slightly for 1969, the front-wheel-drive Eldorado continued to be offered as a single model: a six-passenger, two-door hardtop on a short wheelbase platform. There was a new fine texture cross-hatch grille which was separate from the headlights. The dual headlights were now part of the body design and were fully exposed and stationary. Standard equipment included power operated rear quarter vent windows. Chrome-edged "halo" vinyl roof covers replaced the full vinyl roof. There was a new "Control Center" dash, and more safety items: side-impact door beams, front-seat headrests, energy-absorbing steering column with anti-theft ignition, and more convenient inertia-reel seatbelts. Dealers introduced the 1969 model on September 26, 1968.

Model number

Body/Style number

Body type

SeatingFactory priceShipping weightProduction
69-69369347H

2-dr hardtop Coupe

1969 Cadillac Eldorado

6 pass.$67114550 lb23,333


ELDORADO ENGINE

Engine type

V-8 Overhead valves. Cast iron block

Displacement

472 cubic inches

Bore & stroke

4.30 x 4.06 inches

Compression ratio

10.5:1

Brake horsepower (SAE gross)

375 @ 4400 rpm

Torque

525 @ 3000 rpm

Main bearings

five

Valve lifters

Hydraulic

Carburetor

Rochester four-barrel Quadrajet model 4MV (Eldorado type)

Transmission

Turbo-Hydramatic

Standard axle ratio

3.07:1



CHASSIS DIMENSIONS

Wheelbase

120 inches

Overall length

221 inches

Front tread63 inches
Rear tread63.5 inches
Tires9.00 x 15-PR blackwalls


AVAILABLE OPTIONS

Automatic Climate Control

$516

Bucket seats with console (with leather upholstery required)

$184

Firemist paint

$132

Cruise control

$95

Rear window defogger

$26

Door-edge guards

$5

One-piece front and rear floor mat

$20

Soft Ray glass

$53

Guide-Matic headlamp control

$51

Head restraints (mandatory after Jan. 1, 1969)

$18

Leather upholstery

$158

License frame(s)

$6-13

Power door locks, includes electric seat back release

$68

AM radio

$162

AM/FM stereo radio

$288

AM/FM radio

$188

Power seats with lefthand Four-Way bucket

$53

Power seats with Six-Way front

$90

Front seat warmer

$95

Shoulder belts

$32

Tilt & telescope steering wheel

$95

Trumpet horn

$16

Remote control trunk lock

$32

Twilight Sentinel

$37

Padded vinyl roof

$158

Whitewall tires, heavy-duty high mileage type

$83 exchange


POWER TRAIN OPTIONS


  • All cars used the 472 cubic inch, 375 horsepower V-8 with no other powerplants available.
  • Turbo-Hydramatic transmission was standard equipment throughout the line.
  • Controlled differential was $52.65 extra on all models except Eldorado.
  • Standard axle ratios: (Seventy-Five) 3.21:1; (Eldorado) 3.07:1; (all other models) 2.94:1.

HISTORICAL

  • Dealer introduction for 1969 Cadillac’s and Eldorado’s was held September 26, 1968.
  • Production of the Eldorado body for 1969 was transferred from the Fleetwood plant in Detroit to the Fisher Body plant in Euclid, Ohio.
  • Cadillac enjoyed its fifth consecutive record sales year and built over 250,000 units for the first time in company history. (Calendar year figures).
  • Strikes again affected the 1969 model run and production of cars built to 1969 specifications peaked at 223,267 units, of which 199,934 were regular Cadillacs.
  • Total production fell 2.9 percent over the 1968 model run.
There are no translations available.

1969 Cadillac DeVille




DeVille SERIES 683

DeVille’s had all of the features used in Calais, plus rear center arm rests; dual rear cigarette lighters and two-way power operated horizontal front seat adjusters. A model identification signature script still sat above the horizontal body side rub molding towards the back of the rear fenders.
CADILLAC V-8 ENGINE
  • V-8 Overhead valves
  • Cast iron block
  • Displacement: 472 cubic inches
  • Bore and stroke: 4.30 x 4.06 inches
  • Compression ratio: 10.5:1
  • Brake horsepower: 375 at 4400 rpm
  • Five main bearings
  • Hydraulic valve lifters
  • Carburetor: Rochester four-barrel Quadrajet, model 7028230.
Model NumberStyle NumberBody TypeSeatingFactory PriceShipping WeightProduction Total
69-68368369L

4-door Sedan DeVille

1969 Cadillac DeVille
6595446407,890
69-68368347J

2-door Coupe DeVille

1969 Cadillac DeVille
65721459565,755
69-68368349B

4-door Sedan DeVille

1969 Cadillac DeVille
65954466072,958
69-68368367F

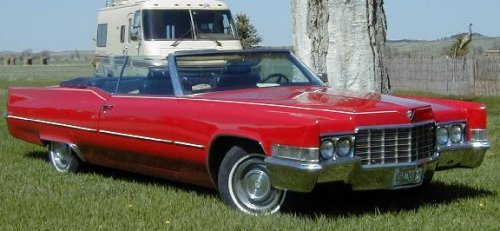

2-door Convertible DeVille

1969 Cadillac DeVille Convertible

65905459016,445

NOTE: On January 1, 1969, head rests (restraints) became mandatory on all U. S. and Canadian cars. Cadillac prices were increased $18 to reflect the cost of the head rests. Dealer preparation charges were $90 on Calais and DeVille. These charges are included in retail prices listed above.
CHASSIS
  • Wheelbase: 129.5 inches.
  • Overall length: 225 inches.
  • Front tread: not available.
  • Rear tread: not available.
  • Tires: 9.00 x 15-PR blackwalls.
POWER TRAIN OPTIONS

  • All cars used the 472 cubic inch, 375 horsepower V-8 with no other powerplants available.
  • Turbo-Hydramatic transmission was standard equipment throughout the line.
  • Controlled differential was $52.65 extra on all models except Eldorado.
  • Standard axle ratios: (Seventy-Five) 3.21:1; (Eldorado) 3.07:1; (all other models) 2.94:1.
CONVENIENCE OPTIONS

  • Automatic Climate Control option ($516).
  • Automatic level control, models G-N-F-J-B-L, ($79).
  • Firemist paint ($132).
  • Cruise Control ($95).
  • Rear window defogger, models G-N-J-B-L ($26).
  • Door guards, models G-F-J ($5); models N-B-L ($8).
  • Dual comfort seat models F-J-B ($105).
  • Twin front and rear floor mats ($17).
  • Soft Ray tinted glass ($53).
  • Guide-Matic headlamp control ($51).
  • Head restraints ($18)
  • Note: Head restraints mandatory after January 1, 1969.
  • Leather upholstery, models J-B-L ($138)
  • License frame, single ($6); dual ($13).
  • Power door locks, includes electric seat back release, models G-F-J ($68); models N-B-L ($68)
  • AM radio ($162).
  • AM/FM radio ($188).
  • Six-way power seat adjuster, front seat, models G-N ($116); front seat, models F-J-B-L, with bench seat only ($90); models F-J-B, for righthand Dual Comfort seat, Code Y accessories required, ($116).
  • Front seat warmer, available all models, ($95).
  • Front shoulder belts ($32).
  • Tilt and telescope steering wheel ($95).
  • Trumpet horn ($16).
  • Remote control trunk lock ($32).
  • Twilight Sentinel, ($32).
  • Expanded vinyl roof, in standard production colors, models G-N ($42).
  • Vinyl roof, models J-B-L ($153).
There are no translations available.

1969 Cadillac Calais




CALAIS SERIES 682

Although its overall size and character was largely unchanged, the 1969 Cadillac was restyled in the Eldorado image. An Eldorado like front fender treatment evolved and helped to emphasize a stronger horizontal design line. Rear quarters were extended to give the car a longer look. There was also an all-new grille with dual horizontal headlamps positioned in the outboard, step-down areas of the grille. The hood was again extended, a total of 2-1/2 inches, to add to the impression of extra length. Calais models came with the following:


  • all GM safety features
  • the V-8
  • Turbo-Hydramatic
  • variable-ratio power steering
  • dual power brakes
  • power windows
  • center front arm rest
  • electric clock
  • two front cigarette lighters
  • twin front and rear ash trays
  • a complete set of interior and exterior courtesy, safety and warning lights
  • Mirror Group
  • concealed three-speed windshield washers and wipers
  • five 9.00 x 15-4PR black sidewall tires.

All regular Cadillac models had a new, squarer roof line and sculptured rear deck and bumper treatments.


Model NumberStyle NumberBody TypeSeatingFactory PriceShipping WeightProduction Total
69-68268249N

4-door Hardtop Sedan

1969 Cadillac Calais
6566046306,825
69-68268247G

2-door Hardtop Coupe

1969 Cadillac Calais
6548445555,600

NOTE: On January 1, 1969, head rests (restraints) became mandatory on all U. S. and Canadian cars. Cadillac prices were increased $18 to reflect the cost of the head rests. Dealer preparation charges were $90 on Calais and DeVille. These charges are included in retail prices listed above.

CADILLAC V-8 ENGINE
  • V-8 Overhead valves
  • Cast iron block
  • Displacement: 472 cubic inches
  • Bore and stroke: 4.30 x 4.06 inches
  • Compression ratio: 10.5:1
  • Brake horsepower: 375 at 4400 rpm
  • Five main bearings
  • Hydraulic valve lifters
  • Carburetor: Rochester four-barrel Quadrajet, model 7028230.
CHASSIS
  • Wheelbase: 129.5 inches.
  • Overall length: 225 inches.
  • Front tread: not available.
  • Rear tread: not available.
  • Tires: 9.00 x 15-PR blackwalls.
POWER TRAIN OPTIONS
  • All cars used the 472 cubic inch, 375 horsepower V-8 with no other powerplants available.
  • Turbo-Hydramatic transmission was standard equipment throughout the line.
  • Controlled differential was $52.65 extra on all models except Eldorado.
  • Standard axle ratios: (Seventy-Five) 3.21:1; (Eldorado) 3.07:1; (all other models) 2.94:1.
CONVENIENCE OPTIONS

  • Automatic Climate Control option ($516).
  • Automatic level control, models G-N-F-J-B-L, ($79).
  • Firemist paint ($132).
  • Cruise Control ($95).
  • Rear window defogger, models G-N-J-B-L ($26).
  • Door guards, models G-F-J ($5); models N-B-L ($8).
  • Dual comfort seat models F-J-B ($105).
  • Twin front and rear floor mats ($17).
  • Soft Ray tinted glass ($53).
  • Guide-Matic headlamp control ($51).
  • Head restraints ($18)
  • Note: Head restraints mandatory after January 1, 1969.
  • Leather upholstery, models J-B-L ($138)
  • License frame, single ($6); dual ($13).
  • Power door locks, includes electric seat back release, models G-F-J ($68); models N-B-L ($68)
  • AM radio ($162).
  • AM/FM radio ($188).
  • Six-way power seat adjuster, front seat, models G-N ($116); front seat, models F-J-B-L, with bench seat only ($90); models F-J-B, for righthand Dual Comfort seat, Code Y accessories required, ($116).
  • Front seat warmer, available all models, ($95).
  • Front shoulder belts ($32).
  • Tilt and telescope steering wheel ($95).
  • Trumpet horn ($16).
  • Remote control trunk lock ($32).
  • Twilight Sentinel, ($32).
  • Expanded vinyl roof, in standard production colors, models G-N ($42).
  • Vinyl roof, models J-B-L ($153).
There are no translations available.

1969 Cadillac Overview



Cadillac built a record 266,798 cars for calendar 1969, enough to grab ninth place in the industry rankings. For the model year, though, it was still 11th at a little over 223,000, up some 3000 units from '68.

1969 Cadillac Convertible

Eldorado was much the same as before, except that headlights were no longer hidden behind flip-up grille panels. Standards were restyled fore and aft, the major change being a return to horizontal headlamps. Parking lights wrapped around the front fenders and flanked a taller grille, still prominently vee'd. A somewhat unpopular change was the elimination of front vent windows. Per Washington edict, no-cost equipment now included front headrests, energy-absorbing steering column, pushbutton seatbelt buckles, ignition-key warning buzzer, and anti-theft steering column/transmission lock. Prices ran from just above $5400 for a Calais to well over $10,000 for the 75 limousine.

Though hardly the innovator it had been in years past (the Eldorado notwithstanding), Cadillac made all the right moves during the Sixties. Offering its renowned combination of luxury, performance, and style, the company managed to defend its title as "Standard of the World" -- or at least of America. While its return to more conservative styling actually lagged behind the rest of the industry, it seems only proper that the company responsible for giving birth to the tailfin should also be the last to abandon it.

CADILLAC I. D. NUMBERS
  • Serial numbers and motor numbers took the same ge nera form used in 1968.
  • The serial number was in the same location.
  • The sixth symbol was changed to "9" to indicate 1969 model year.
HISTORICAL
  • Dealer introduction for 1969 Cadillac’s and Eldorado’s was held September 26, 1968.
  • Production of the Eldorado body for 1969 was transferred from the Fleetwood plant in Detroit to the Fisher Body plant in Euclid, Ohio.
  • Cadillac enjoyed its fifth consecutive record sales year and built over 250,000 units for the first time in company history. (Calendar year figures).
  • Strikes again affected the 1969 model run and production of cars built to 1969 specifications peaked at 223,267 units, of which 199,934 were regular Cadillac’s.
  • Total production fell 2.9 percent over the 1968 model run.
There are no translations available.

1968 Cadillac Fleetwood




FLEETWOOD SIXTY-SPECIAL SUB SERIES 680/681

Features distinguishing 1968 Sixty-Specials, in addition to a longer wheelbase, were the same exterior and interior appointments used in 1967 models. Extra items of standard equipment included:

  • Automatic Level Control
  • front and rear power operated ventipanes
  • and, on Broughams, adjustable reading lamp
  • padded roof with special scripts and emblems
  • and carpeted folding foot rests.


Model NumberStyle Number

Body Type

SeatingFactory PriceShipping WeightProduction Total
68-68068069-M

4-door Sedan

1968 Cadillac Fleetwood

6658347953,300
68-68168169-P

4-door Brougham

1968 Cadillac Fleetwood

66899480515,300

NOTE: Some sources list lower prices for 1968 Cadillac’s, indicating a mid-year ability and prices of options and accessories were increase. The higher recorded prices are being used here.

FLEETWOOD SEVENTY-FIVE SUB-SERIES 697/698

Again marked by simple extra-long body rub moldings, a formal high-headroom look (with doors cut into the roof) and Fleetwood type wreath and crest emblems, the nine-passenger models had the longest Cadillac production car wheelbase, as well as power front ventipanes, Automatic Level Control, right-hand manually operated outside rear view mirrors, 8.20 x 15-8PR blackwall tires and Automatic Climate Control air-conditioning, as standard equipment.

Model NumberStyle Number

Body Type

SeatingFactory PriceShipping WeightProduction Total
68-69769723-R

4-door Sedan

1968 Cadillac Fleetwood Limo

910,6295300805
68-69769733-S

4-door Limousine

1968 Cadillac Fleetwood Limo

910,7685385995
68-69869890-ZCommercial chassis---2,413


NOTE: The commercial chassis was built on a 156 inch wheelbase and was provided to professional car builders for the manufacture of hearses and ambulances, etc.

CADILLAC ENGINE

  • V-8. Overhead valves.
  • Cast iron block.
  • Displacement: 472 cubic inches.
  • Bore and stroke: 4.30 x 4.06 inches.
  • Compression ratio: 10.5:1.
  • Brake horsepower: 375 at 4400 rpm
  • Five main bearings.
  • Hydraulic valve lifters.
  • Carburetor: Rochester Quadrajet four-barrel model 7028210S.

NOTE: The new engine featured



  • a metal temperature monitoring device
  • air injection emissions control system
  • integral air-conditioning system (still optional)
  • cast crankshaft and connecting rods
  • integral water crossover pipe with thermostatic passages
  • engine bearings with more surface area
  • 15-plate battery.

CHASSIS

FeatureSeries 75Series 60Commercial chassis
Wheelbase149.8"133"156"
Overall length245.2"228.2"-
Rear axle ratio2.94:1
Transmissionthree-speed Turbo-Hydramatic
Tires8.20 x 159.00 x 15
Front treadnot available
Rear Treadnot available

POWER TRAIN OPTIONS
Optional axle ratio data not available.  Air injector reactor and closed positive crankcase ventilation standard. Controlled differential was now $52.65 extra on all models except Eldorado.
CONVENIENCE OPTIONS

Availability and prices of options and accessories were largely the same as 1967
  • Auxiliary horn ($16)
  • Automatic Climate Control on Sixty-Special models ($516)
  • Firemist finish ($132)
  • Cruise control ($95)
  • Rear window defogger on models Sixty-Special ($27)
  • Door guards ($8)
  • Soft Ray glass ($51)
  • Guide-Matic headlamp control ($51)
  • Head rests ($53)
  • Leather upholstery on Sixty-Special ($138)
  • License frame ($13/pair)
  • Power door locks ($68)
  • Power door locks for Fleetwood 75 models ($116)
  • AM radio ($162)
  • AM/FM radio ($188)
  • AM/FM stereo on Sixty-Special ($288)
  • AM radio rear controls on Fleetwood 75 models ($242)
  • Six-way power front seat on models M-P-R ($83)
  • Rear center seat belt ($11)
  • Front shoulder straps ($32)
  • Tilt-telescope steering wheel ($90)
  • Remote control trunk lock ($52)
  • Twilight Sentinel ($32)
  • White sidewall tires, size 9.00 x 15 four-ply 8PR-5, except nine-passenger models ($56 exchange)
  • White sidewall tires, size 8.20 x 15, four-ply 8PR-5 on nine-passenger models ($63 exchange).
  • New items of optional equipment were added as well:
    • Twin front and rear floor mats for Series 60 ($17)
    • Twin front floor mats for Fleetwood 75 models ($10)
    • Front seat warmer for all models except Fleetwood 75s, which came instead with rear seat warmer only, both at ($95).

HISTORICAL

  • Dealer introduction for 1968 Cadillac’s and Eldorado’s took place September 21, 1967.
  • Fourth successive yearly sales record set this year despite 21 day UAW shutdown at Fisher Body Fleetwood plant in Detroit (November 1967)
  • Production was down 1.1 percent, due to same strike.
  • Four-wheel disc brakes with floating calipers optionally available.
  • All-new dash-board design.
  • Larger, shrouded rear view mirrors to eliminate wind buffeting.
